2021, Mar 04

Hi All! Welcome back to the second part of the Series. Today we’re going to connect the last dots and take a look at the server.

The last time we gave a look at the client and saw how we can leverage Blazor and SignalR to show real-time updates to our users.

But who’s generating those updates? And how?

Our users can trigger the execution of a multi-step operation. And since this operation can take some time, it has to run in the background, without blocking the UI.

Now, it might also be possible that the operation requires intervention of multiple services. In this case we can opt for either orchestration or choreography.

I personally prefer to use choreography to define business processes. I find easier to define the steps and to debug than with orchestration. Beware that it’s not a hard choice for me, more a matter of taste and of course, requirements.

In any case we always need to ensure proper correlation and monitoring.

So! Our server is going to use OpenSleigh to handle the choreography. In this example, I won’t be really focusing on Transport or Persistence, so we’ll be simply using the in-memory driver.

The first thing we have to do is to create a SignalR Hub :

public class SagaHub : Hub
{
    private readonly IMessageBus _bus;

    public SagaHub(IMessageBus bus)
    {
        _bus = bus ?? throw new ArgumentNullException(nameof(bus));
    }

    public async Task StartSaga(string clientId, int stepsCount)
    {
        var message = new StartSaga(stepsCount, clientId, Guid.NewGuid(), Guid.NewGuid());

        await _bus.PublishAsync(message);
    }
}

It has a very simple but important task: receive the start message from our Client and trigger the execution of the Saga.

Our Saga will handle these messages:

public  record  StartSaga(int  StepsCount, string  ClientId, Guid  Id, Guid  CorrelationId) : IMessage;

public  record  ProcessNextStep(Guid  Id, Guid  CorrelationId) : IMessage;

public  record  SagaCompleted(Guid  Id, Guid  CorrelationId) : IEvent;

Let’s take a look at each one.

StartSaga is the initiator. We’ll use it to initialize the Saga State with the number of steps (sent from the UI) and the Client ID. This one contains the HubConnection’s ConnectionId, we’ll need it to send the notifications back to the client.

Be careful though, as the documentation states very clearly:

“This value will be cleared when the connection is stopped and will have a new value every time the connection is (re)established”.

I want to focus on the general idea, so we won’t be handling reconnections in this sample (at least not for now).

Our handler for the StartSaga message looks like this:

public async Task HandleAsync(IMessageContext<StartSaga> context, CancellationToken cancellationToken = default)
{
	this.State.ClientId = context.Message.ClientId;
	this.State.TotalSteps = context.Message.StepsCount;
	this.State.CurrentStep = 0;

	await SendNotification($"starting saga {context.Message.CorrelationId} with {State.TotalSteps} total steps...");

	await this.Bus.PublishAsync(
	    new ProcessNextStep(Guid.NewGuid(), context.Message.CorrelationId),
	    cancellationToken);
}

We first set the initial State, then we call SendNotification() (we’ll take a look at it in a second), and lastly, we trigger the execution of the first step with ProcessNextStep.

The SendNotification looks like this:

private async Task SendNotification(string text, bool done = false)
{
    var client = _hubContext.Clients.Client(this.State.ClientId);
    await client?.SendAsync("Notification", text, done);
}

It makes use of an instance of IHubContext<SagaHub>(that we injected in our Saga) to retrieve the initiating Client by ID and send a Notification to it. As we saw last time, the UI is already registered and handling these notifications by appending the text to the list.

The ProcessNextStep handler at this point will:

  • check if we have reached the last step
  • if we did, publish a SagaCompleted event
  • otherwise, increase the inner steps counter
  • send a notification to the Client
  • send another ProcessNextStep message.

I’ve decided to model SagaCompleted as an event instead of a message because with it we’re not doing any actual work, but instead we’re informing consumers that something already happened.

They might take an action as consequence of it but it’s not our Saga’s concern. The UI is infact doing some operations, like re-enabling the “start” button, but again, our backend has no need to know about it.

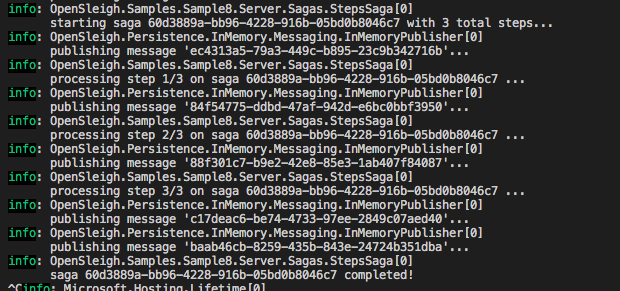

This is what will be logged on the server:

That’s all! Feel free to take a look at the repository on GitHub and don’t hesitate to write a comment!
